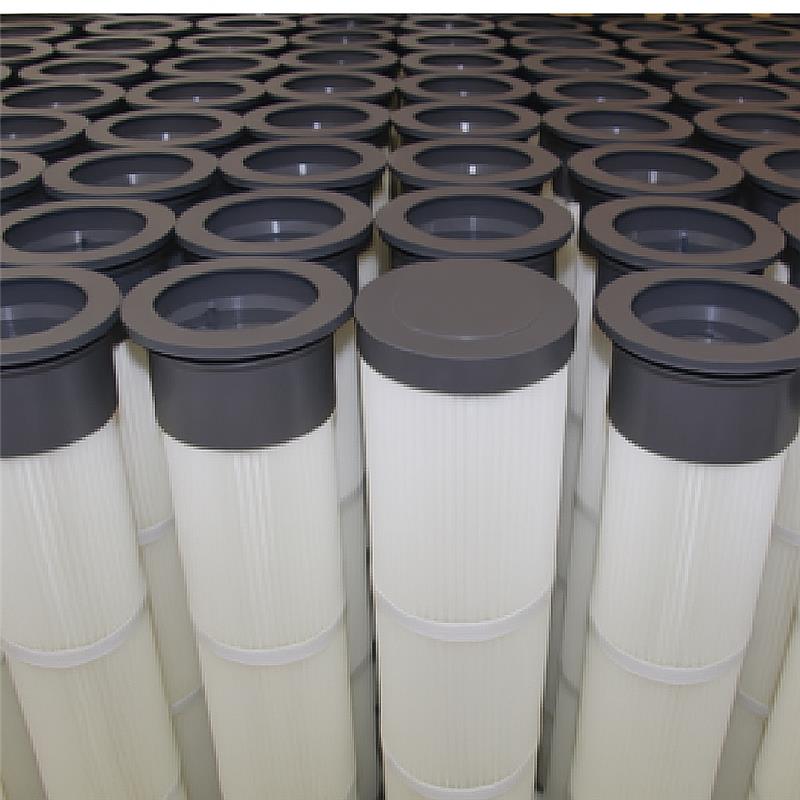

These are made 100% spun bonded polyester filter fabrics with GI/ SS / PP Filter Cage as core material. They are used in a variety of applications like food, pharmaceuticals, chemicals, cements, sugar, fertilizers etc. And process industries. These are designed for providing high efficiency and purity filtration.
FEATURES
- More surface area for filtration due to its pleated configuration
- Filtration rating from 0.1 to 25 micron
- Biologically safe
- Robust outer Cage
- No migration
- Thermally welded
- Fitment support with metal insertion plug
TECHNICAL SPECIFICATIONS
- Sizes: - 154 mm / 160 mm Tube Sheet diameter
- Filtration Rating: - 0.1 – 25 micron
- Filtration area: 1 – 5.5 SQM maximum
- Spun bonded polyester –Oil and Water repellent (OWR)
- Spun bonded polyester –Aluminium anti static coated
- Length: 500 mm / 1000 mm / 2100 mm Long
- Outside Diameter: - 145 – 150 mm
- Media configuration available: Spun bonded polyester –plain fabric
- Spun bonded polyester –PTFE coated
- Spun bonded polyester –ePTFE membrane laminated
